Consumables for cryogenic Deflashing machine – Supply of liquid nitrogen and Its Tank

Consumables for cryogenic Deflashing machine – Supply of liquid nitrogen and Its Tank

The cryogenic deflashing machine, as an essential auxiliary manufacturing machinery in the production process of rubber enterprises, has been indispensable.

However, since its entry into the market around the year 2000, local rubber enterprises have little knowledge of the working principles and processes of the frozen rubber trimming machine.

Therefore, this article will provide a detailed introduction to the storage and supply methods of the cryogen, liquid nitrogen, for cryogenic deflashing machine.

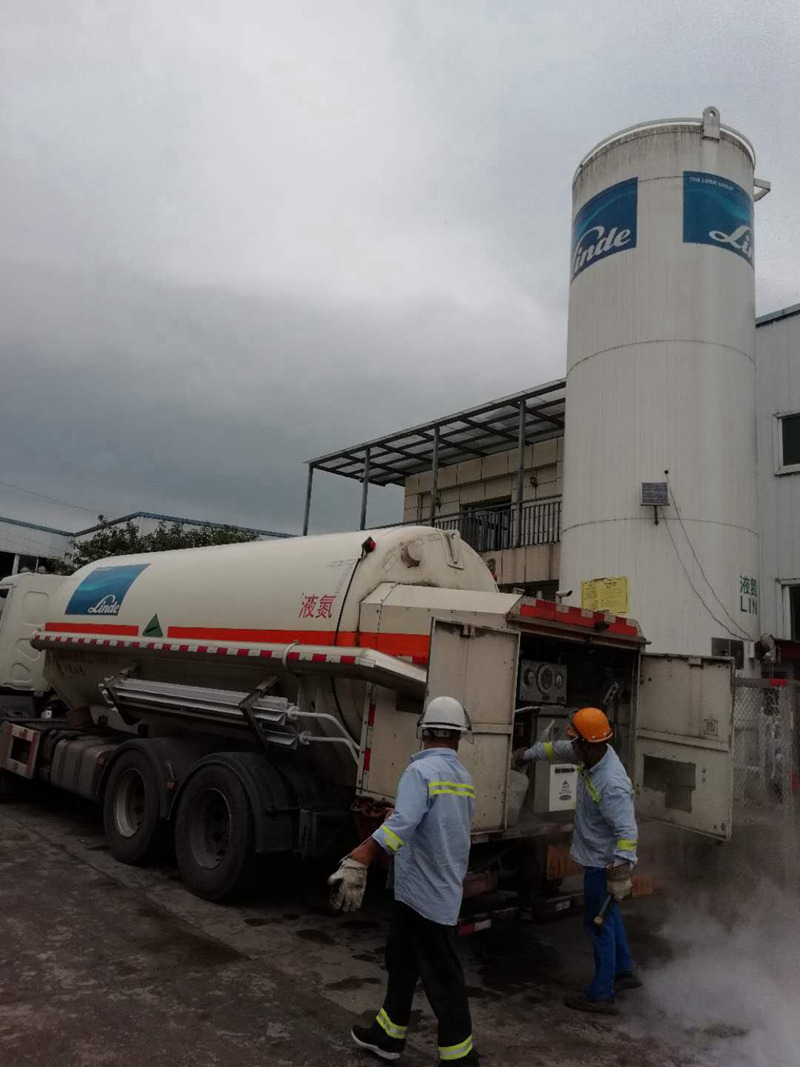

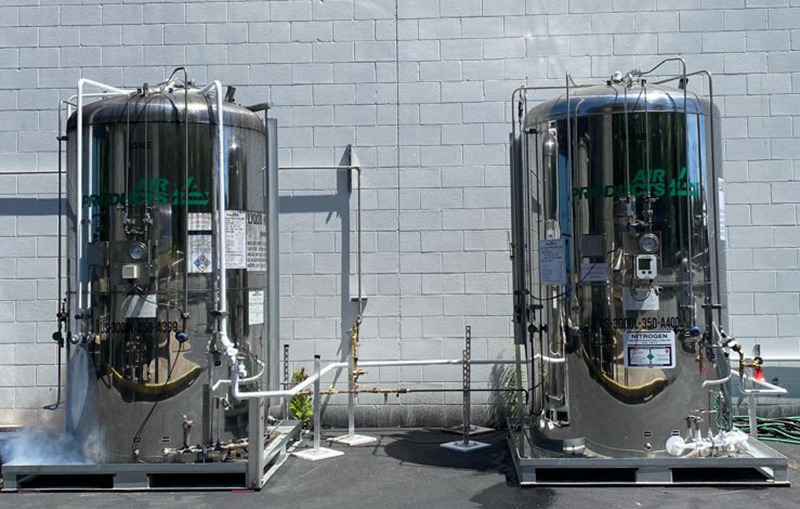

In the past, liquid nitrogen was typically stored in separate liquid nitrogen tanks-Above Photo

Therefore, when purchasing a cryogenic trimming machine, it was necessary to buy a matching liquid nitrogen tank to ensure the proper operation of the machine.

The installation of the liquid nitrogen tank required approval from the relevant authorities, which was a cumbersome process, and the tanks themselves were expensive.

This has led many factories that urgently need to use cryogenic deflashing machines to improve work efficiency to hesitate, as it also involves a certain upfront cost investment.

Nanjing PEGE has introduced a liquid nitrogen manifold supply station to substitute for liquid nitrogen tanks.

This system centralizes the gas supply of individual gas points, enabling multiple low-temperature Dewar flasks to be combined for centralized gas supply. It solves the cumbersome process of handling liquid nitrogen tanks, allowing customers to operate the frozen trimming machine immediately after purchase.  The mircro tank and dewar cylinder are portable and can be installed in the inner room.

The main body of the system simultaneously connects three bottles of liquid nitrogen Dewar flasks, and it also includes a port that can be expanded to accommodate four bottles.

The system pressure is adjustable and equipped with a safety valve. It’s easy to assemble and can be mounted on the wall using a triangular bracket or placed on the ground using the bracket.

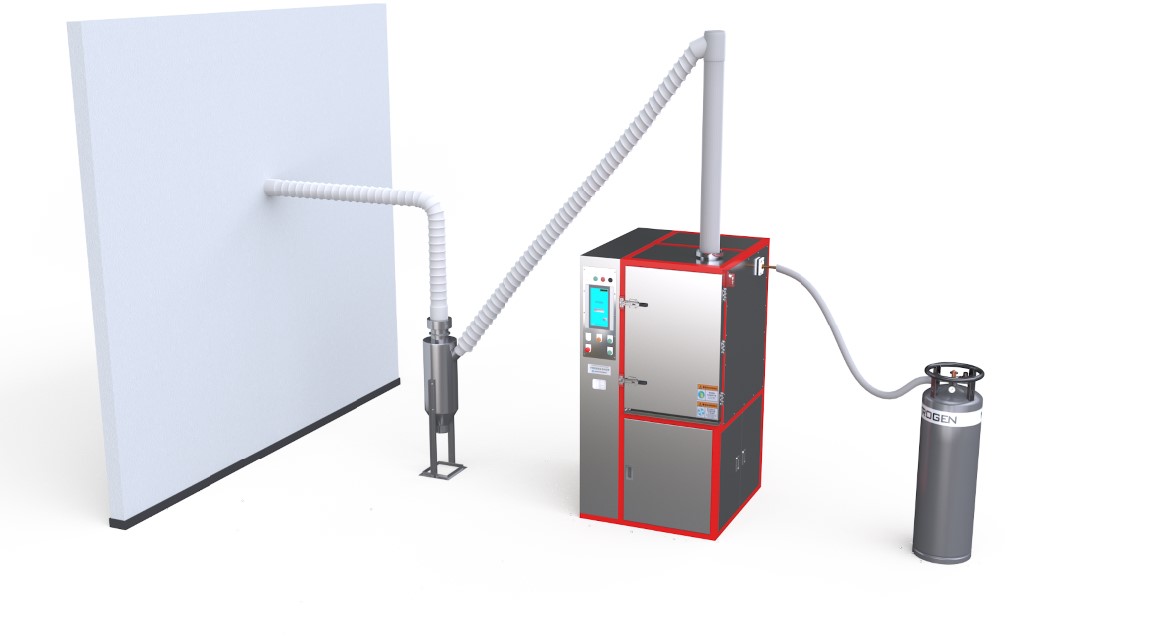

This is the full layout of cryogenic deflashing machine using a smaller dewar cylinder for lower production volume use.
