High Quality Auto Weighing Rubber Strip Cutter Shipped to Verbrie, France
Feb 25, 2025
Nanjing PEGE High Quality Auto Weighing Rubber Strip Cutter Shipped to Verbrie, France

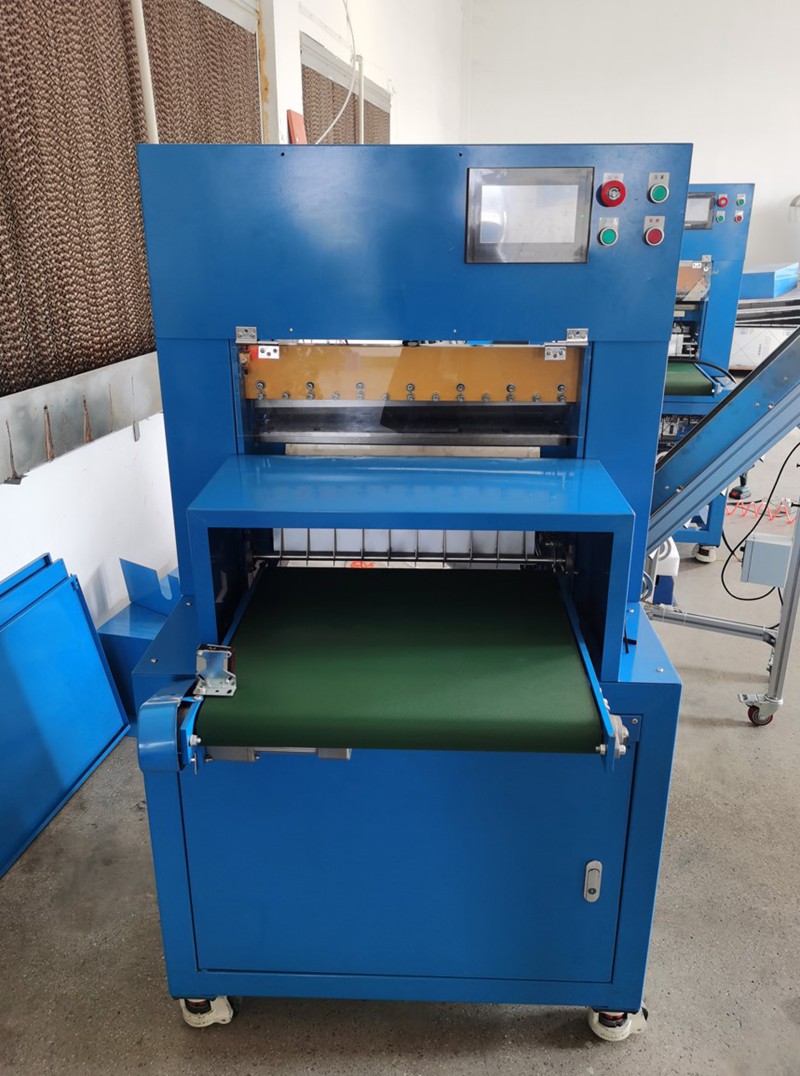

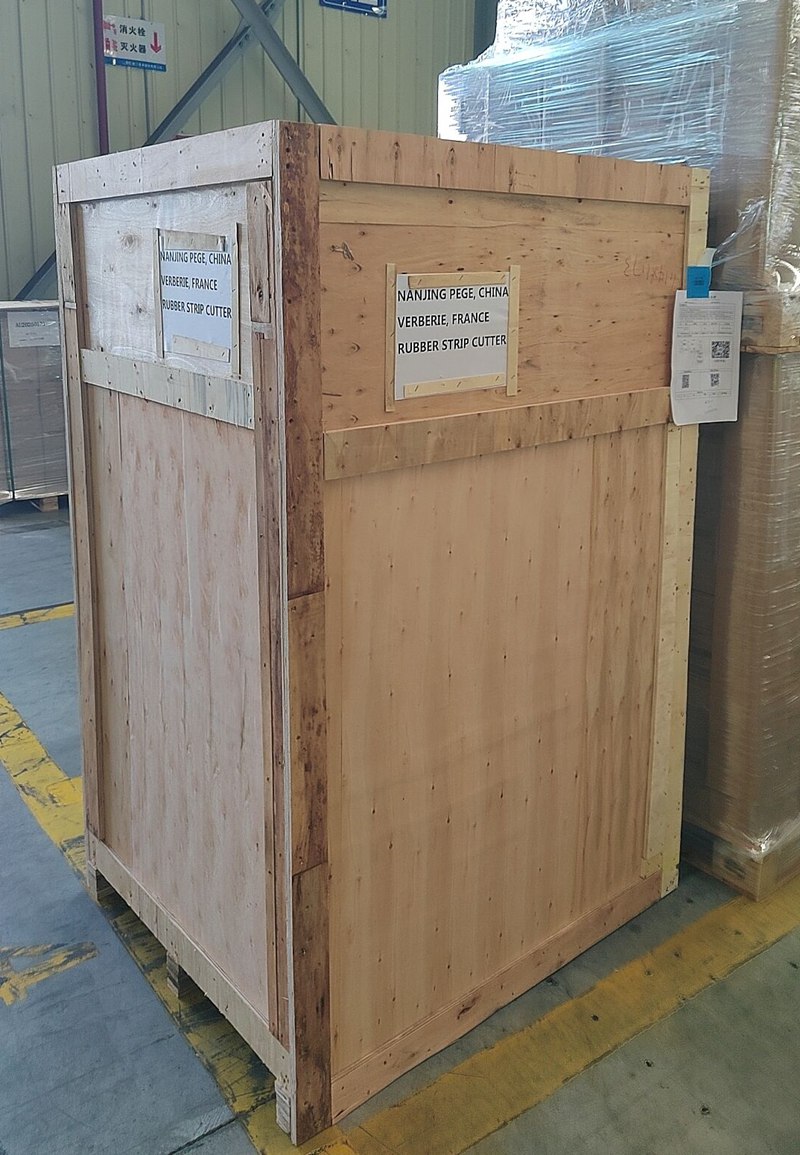

High quality and performance automatic pneumatic drive weighing cutter had been finished and shipped to our dear French customer.
This rubber strip cutting machine can cut the rubber sheet by weighing the material weight and precision can be up to 0.2g.
Cuttting thickness can be max 10mm.


Main Features:
1. Pneumatic Drive, also electrical drive optional.
2. Auto Weighing, auto identification and auto compensation to ensure higher precision of weight cutting.
3. During cutting, machine can automatically identify the OK products and NG products, then put them into different collection boxes.
4. When cutting the rubber sheet, either stop the machine by quantity control or manual control
5. The machine is equipped with a patent protection program, when the user wrongly adjusts the blade or a breakdown happen, there will be warning notice on the operation panel screen.
6. Can cut the rubber sheet by precise weight, the operation is more convenient and intelligent.
Pneumatic Auto Weighing Rubber Strip Cutter
|
Model
|
PG-AW-600
|
PG-AW-800
|
Type
|
Pneumatic Drive
|
Pneumatic Drive
|
Power supply
|
1.1kw 1ph 220V 50/60Hz
|
1.1kw 1ph 220V 50/60Hz
|
Size
|
1030*899*1580
|
1030*1100*1580
|
Weight
|
320kg
|
400kg
|
Cutting Direction
|
Horizontal
|
Horizontal
|
Cutting width
|
≤580mm
|
≤700mm
|
Cutting Length
|
1-30mm
|
1-30mm
|
Cutting Thickness
|
1~10mm
|
1~10mm
|
Max Precision
|
0.2g*
*Strip thickness should be consistent.
|
0.2g*
*Strip thickness should be consistent.
|
Blade Material
|
Cr12 Mov Vacuum Heat
|
Cr12 Mov Vacuum Heat
|
Feeding Mode
|
Stepper Motor
|
Stepper Motor
|
Cut Speed
|
12-18cuts/min
|
12-18cuts/min
|
Speed Control
|
PLC
|
PLC
|
Operation Mode
|
7-inch Touch Screen
|
7-inch Touch Screen
|
