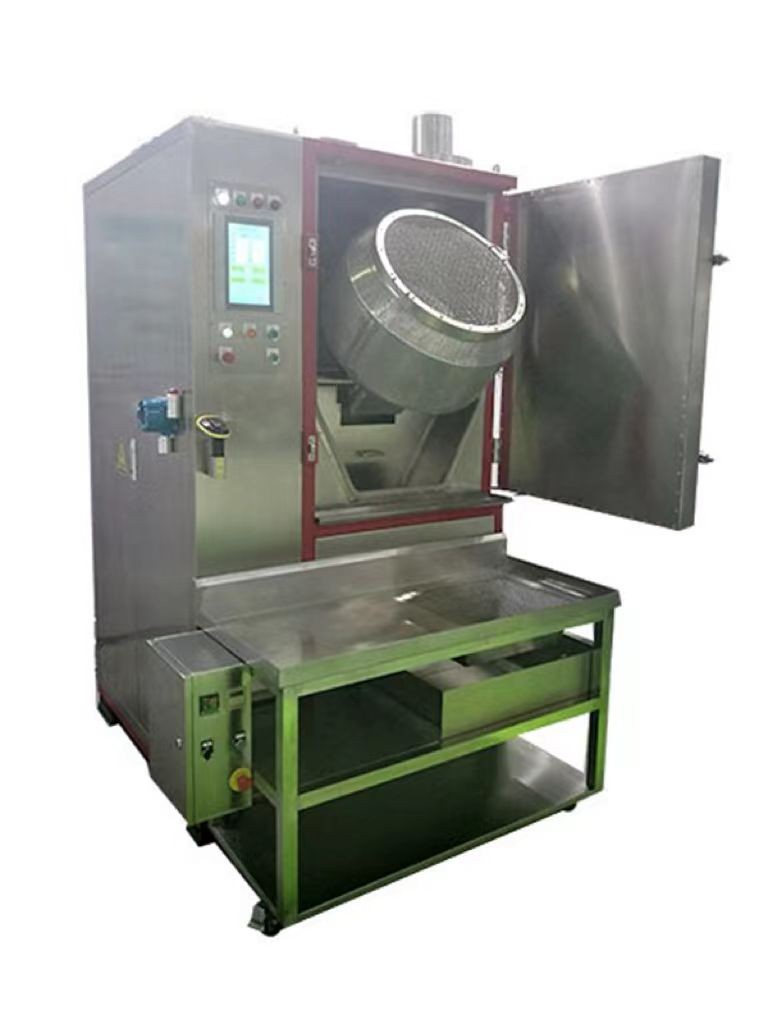

Pege's Cryogenic Deburring Machine Features

Pege’s Cryogenic Deburring Machine Features

■Visual& Intelligent HMI Panel - User friendly 11inch HMI operation panel, one stop operation mode, can record and read the parameters, easy to operate and manage。

■Robust Machine Frame - Frame is all made of 304 stainless steel, its edge uses red powder coating process to ensure both durability and elegant appearance.

■Compact Design to Save LN2 Consumption - To optimize the machine design to make sure the machine chamber is compact and small for saving liquid nitrogen to lower running cost.

■Greater Insulation Effect - Despite of using 75mm thicker insulation material, the insulation material is strengthened by SUS304 material, to ensure excellent heat preservation effect, also can lower LN2 consumption largely.

■Higher Blasting Speed with Big Diameter Wheel Ensure Great Power - Different wheel size choices ensure perfect match between power and barrel capacity to realize best processing result and highest productivity. Our 80Liter use a Ф300mm wheel with a max 7000rpm speed, and 120Liter&150liter a 350mm wheel with a max 7000rpm speed.

■Durable and Efficient Vibrator-Reliable customized SUS 304 vibrator can keep stable running for more than 10 years in the low temp, high humidity environment without failure.

■Bigger Diameter Sieve for Better Separation-Bigger capacity model(120liter&150liter’s) vibrator sieve diameters are around 600mm, which is larger than most of other manufactures, has the advantage of quicker filtering flash and media and has higher efficiency.

■Automatic Media Suction and Blasting- Automatic media circulation system by negative pressure occurred in machine inner chamber, not by screw lifter, save media and more intelligent.

■World Well-known Controller brand like SIEMENS, Panasonic or Mitsubishi, Omron to ensure high working stability in the low temp environment.
■Easy and Convenient Media Exchange system to make operation quicker and easier.

■Better Gear Box Design and use customized anti-low temp oil seal to ensure very few dusts get into the box, so less maintenance on gear box.

■More Durable Umbrella Gear and Bearings will ensure long term consistent running with less failure and less maintenance cost.

■Robust Barrel and Machine Door-use strong and thick steel for barrel and machine doors, deformation will not happen even after long time use.
