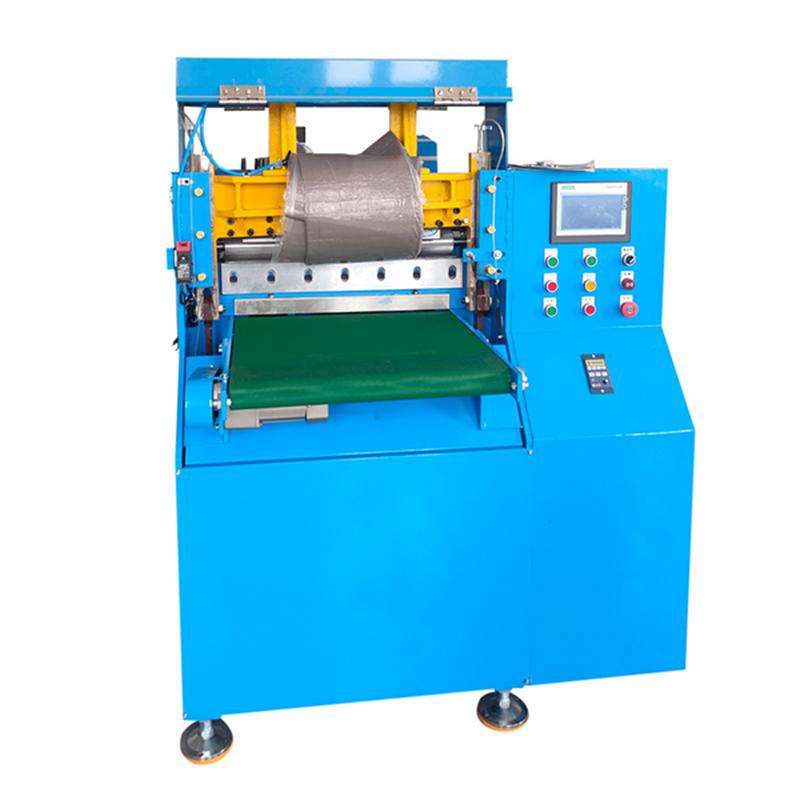

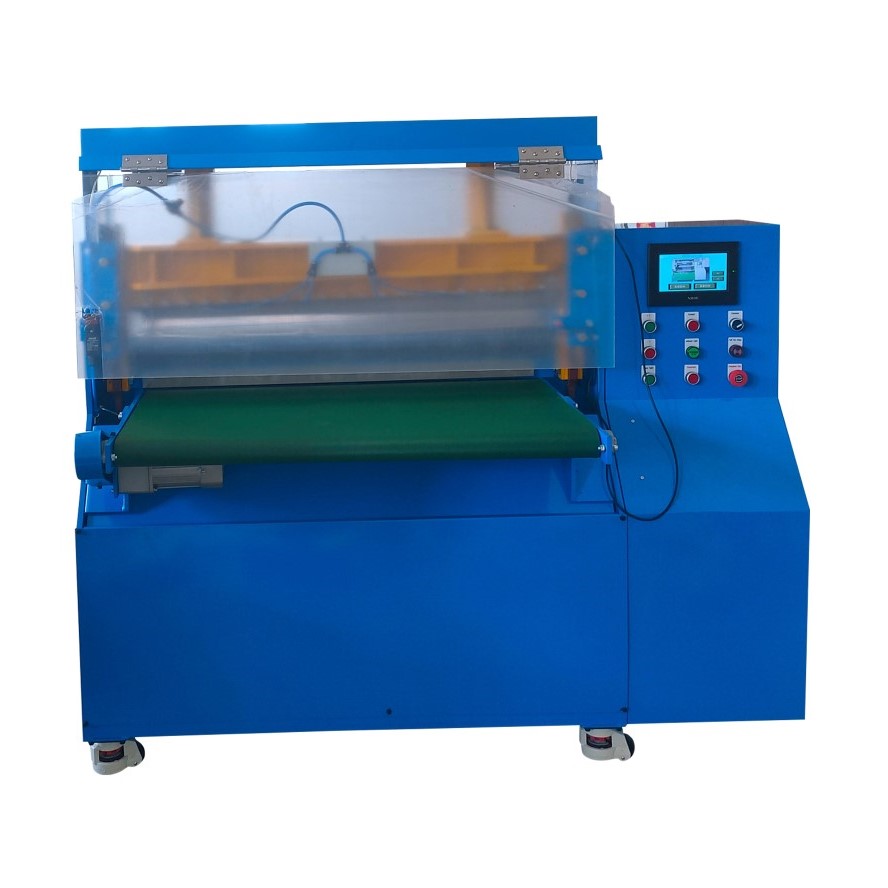

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
|
Rubber Strip Cutting Machine Advanced Type |
|||
|
Model |
PG-HA-600 |
PG-HA-800 |
PG-HA-1000 |
|
Size |
1350*1300*1490 |
1350*1500*1490 |
1350*1700*1490 |
|
Weight |
600kg |
680kg |
760kg |
|
Cutting Direction |
Horizontal |
Horizontal |
Horizontal |
|
Cutting width |
≤580mm |
≤800mm |
≤1000mm |
|
Cutting Length |
0.1-1000mm |
0.1-1000mm |
0.1-1000mm |
|
Cutting Thickness |
0~25mm |
0~25mm |
0~25mm |
|
Max Precision |
0.1mm or 0.1g* *Strip thickness should be consistent. |
0.1mm or 0.1g* *Strip thickness should be consistent. |
0.1mm or 0.1g* *Strip thickness should be consistent. |
|
Blade Material |
Tungsten Steel W18 |
Tungsten Steel W18 |
Tungsten Steel W18 |
|
Feeding Mode |
Servo motor |
Servo motor |
Servo motor |
|
Cut Speed |
≤80/min |
≤80/min |
≤80/min |
|
Power supply |
4kw 3ph 380v |
4kw 3ph 380v |
5.5kw 3ph 380v |
|
Speed Control |
PLC& Inverter |
PLC& Inverter |
PLC& Inverter |
|
Operation Mode |
7-inch Touch Screen |
7-inch Touch Screen |
7-inch Touch Screen |
Advanced Rubber Sheet Cutter
Main Features of Standard Rubber Strip Cutting
1. Numerical Rubber Cutting Machine use well-known brand PLC running at high precision and quick response.
2. The Rubber Cutting Machine has two model, can cut the strip by length or by weight control.
3. Feeding precision can be+-0.1mm and if the cut length is less than 20mm, the weighing precision can be+-0.2g
4. Main power uses 3phase slowdown brake motor, it is powerful and very safe.
5. Use imported fiber sense position components, it is accurate and durable.
6. Cutting Blades are driven by chain belt system, can cut FKM sheet of hardness up to 90 SHORE A.
7. 7inch HMI touch screen has the function of automatic counting, monitoring, and warning notice, it is convenient and more direct viewing
8. Cutting speed is controlled by brand inverter, the cutting speed can be adjusted directly and then it leads to high efficiency.
9. Strip outlet mouth apply safety door device, two steps protection method to ensure operation safety
10. Automatic material press system allows lower burden on operator and more convenient operation
11. Cutting blade use Tungsten steel W18 to ensure durability and long cutting life of blade
12. Cutting blade apply bevel cut design, it can reduce the cutting resistance and improve cutting speed, upper blade and lower blade cooperate precisely to ensure less abrasion on the cutting blades
13. Oil lubricant system use automatic electromagnetic pump to reduce break and can filling the oil automatically
14. Innovated and advance design and manufacturing of the CNC rubber cutting machine is very easy to operate, by using touch screen, any length or cutting speed can be adjusted during the operation.
Applications of Rubber Strip Cutter
Silicone Raw Material
Silicone Film
Rubber Raw Material
Rubber Strip or Rubber Sheet
EVA Foaming
Paper, Duct Tape, Steel Plats, Alumnimum Flakes, Ribbon.
Online Continious Rubber Strip Cutting
The advanced rubber strip cutter can be designed and applied for Online Continous cutting process allowing the customer to realize the efficient and continious production. Check some examples.
Feeding Cutting Delivery
Customer Site Installations
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Rubber Strip Cutting Machine Standard Type Model PG-H-600 PG-H-800 PG-H-1000 Size 1170*1300*1400 1170*1500*1400 1170*1700*1400 Weight 400kg 450kg 500kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~12mm 0~12mm 0~12mm Precision 0.2mm or 0.3g 0.2mm or 0.3g 0.2mm or 0.3g Blade material CR12Mov CR12Mov CR12Mov Feeding mode Stepper motor Stepper motor Stepper motor Cut Speed ≤70/min ≤70/min ≤70/min Power supply 2kw 3ph 380v 3kw 3ph 380v 4kw 3ph 380v Speed Control Industrial Control Board Industrial Control Board Industrial Control Board Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Electric Drive Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Electric Drive Electric Drive Power supply 2kw 1ph 220V 50/60Hz 3kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤780mm Cutting Length 0.2mm-500mm 0.2mm-500mm Cutting Weight 0.2g-1000g 0.2g-1000g Cutting Thickness 0~10mm 0~10mm Max Precision 0.2g* *Strip thickness should be consistent. 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-20cuts/min 0-20cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components. Electric Drive Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Electric Drive Electric Drive Power supply 2kw 1ph 220V 50/60Hz 3kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤780mm Cutting Length 0.2-500mm 0.2-500mm Strip Weight 0.2g-1000g 0.2g-1000g Cutting Thickness 0~10mm 0~10mm Max Precision 0.2g* *Strip thickness should be consistent. 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-20cuts/min 0-20cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen
Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. An auto stacking machine can be equiped with the silicone cutter to realize a full automatic silicone cutting and stacking system to improve efficiency greatly. Specification Model PG-SC-600 Size 1040*680*1000mm Material Suitable Silicone Sheet Power supply 0.93Kw 220V 50-60hz Cutting Length 0.1mm-1000mm, Cutting width ≤ 550mm, Sheet thickness ≤10mm Cutting weight 0.1g-1000g Cutting speed ≤100cut/min Model By Weight or By Length Operation Mode Touch Screen Control Mode PLC Numerical Controlled
Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model PG-SC-600 Size 1040*680*1000mm Material Suitable Silicone Sheet Power supply 0.93Kw 220V 50-60hz Cutting Length 0.1mm-1000mm, Cutting width ≤ 550mm, Sheet thickness ≤10mm Cutting weight 0.1g-1000g Cutting speed ≤100cut/min Model By Weight or By Length Operation Mode Touch Screen Control Mode PLC Numerical Controlled
