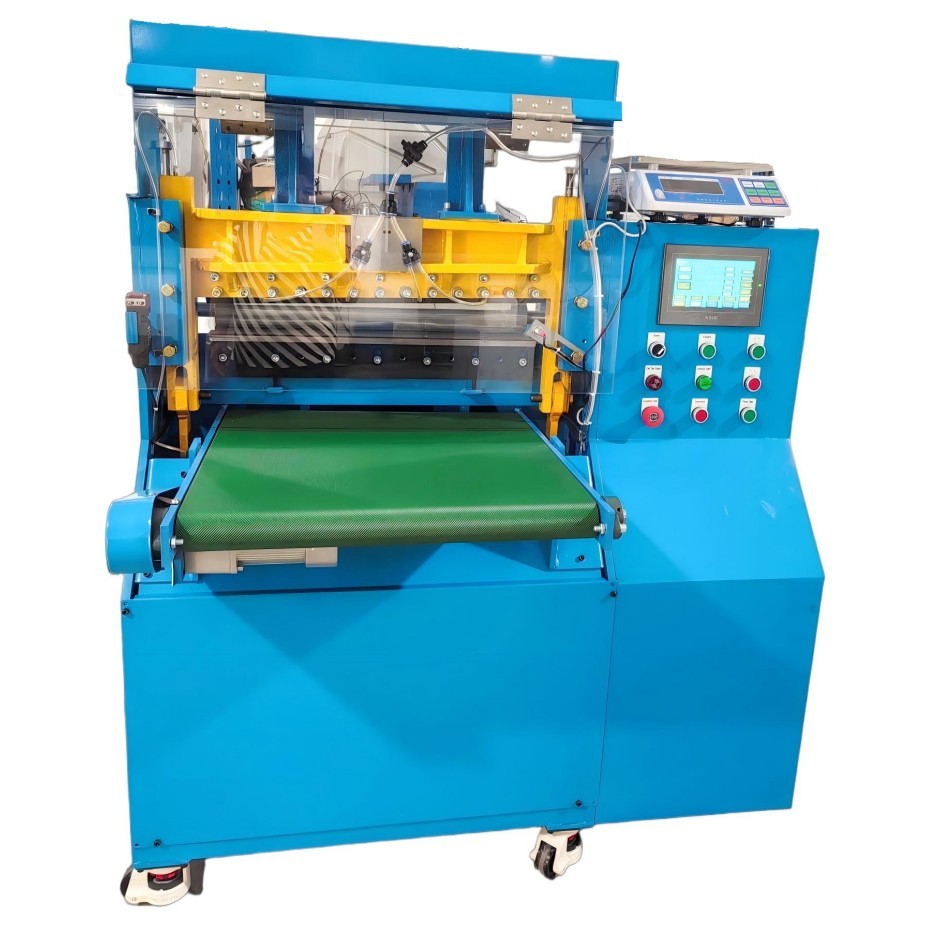

Standard Rubber Strip Cutting Machine PG-H-600

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Standard Type Model PG-H-600 PG-H-800 PG-H-1000 Size 1170*1300*1400 1170*1500*1400 1170*1700*1400 Weight 400kg 450kg 500kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~12mm 0~12mm  0~12mm  Precision 0.2mm or 0.3g 0.2mm or 0.3g 0.2mm or 0.3g Blade material CR12Mov CR12Mov CR12Mov Feeding mode Stepper motor Stepper motor Stepper motor Cut Speed ≤70/min ≤70/min ≤70/min Power supply 2kw 3ph 380v 3kw 3ph 380v 4kw 3ph 380v Speed Control Industrial Control Board Industrial Control Board Industrial Control Board Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 1ph 220V 50/60Hz 2.2kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 1ph 220V 50/60Hz 2.2kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen

Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled

Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled
