1.Host PLC: XCe-20T high speed pulse output 20K, strong and durable, fast computing speed.
2.Human-Computer Interface: 5inch color touch screen, excellent performance, and stable operation.
3.Cutting motor: Planetary Deceleration Electromagnetic Baking Motor, powerful and longer life
4.Feed motor: 220V high voltage closed loop stepping motor fast operation, high precision and high stability
5.Cutter, Splitter: Special mechanical design, material will be not adhesive after cutting
Main Features:
1.One machine has multiple usage, it can both cut and slit and has the feature of high accuracy and therefore can save the raw material, save cost, and also improve the production efficiency
2.Planetary Deceleration electromagnet brake motor cutting, has the feature of long life, low noise, and strong power
3.200V voltage closed loop stepping motor with high feeding speed and high accuracy can not only save the manual weighing process, but also reduce the reject ratio and improve production efficiency as well
4.Cutting guide use the well-known brand linear guide rail, has the feature of low noise, high accuracy, and good quality.
5.Machine has high level safety feature, in the front of the blade rack, there is a safety fender and has a safety electronic eye, when you take off the safety plate, all actions will be stopped automatically, and a warning notice will show on the operation panel screen.
6.When cutting the rubber sheet, either stop the machine by quantity control or manual control
7.Has three sections setting of length and speed, can use single mode or use combined mode, can cut different specification material at the same time, it will be more general use.
8.The machine is equipped with a patent protection program, when the user wrongly adjusts the blade or a breakdown happen, there will be warning notice on the operation panel screen.
9.Has two cutting modes, fast cutting or standard cutting, then it will be more efficient and more stable
10.Has two control methods, it can cut the rubber sheet by choosing length or precise weight, the operation is more convenient and intelligent.

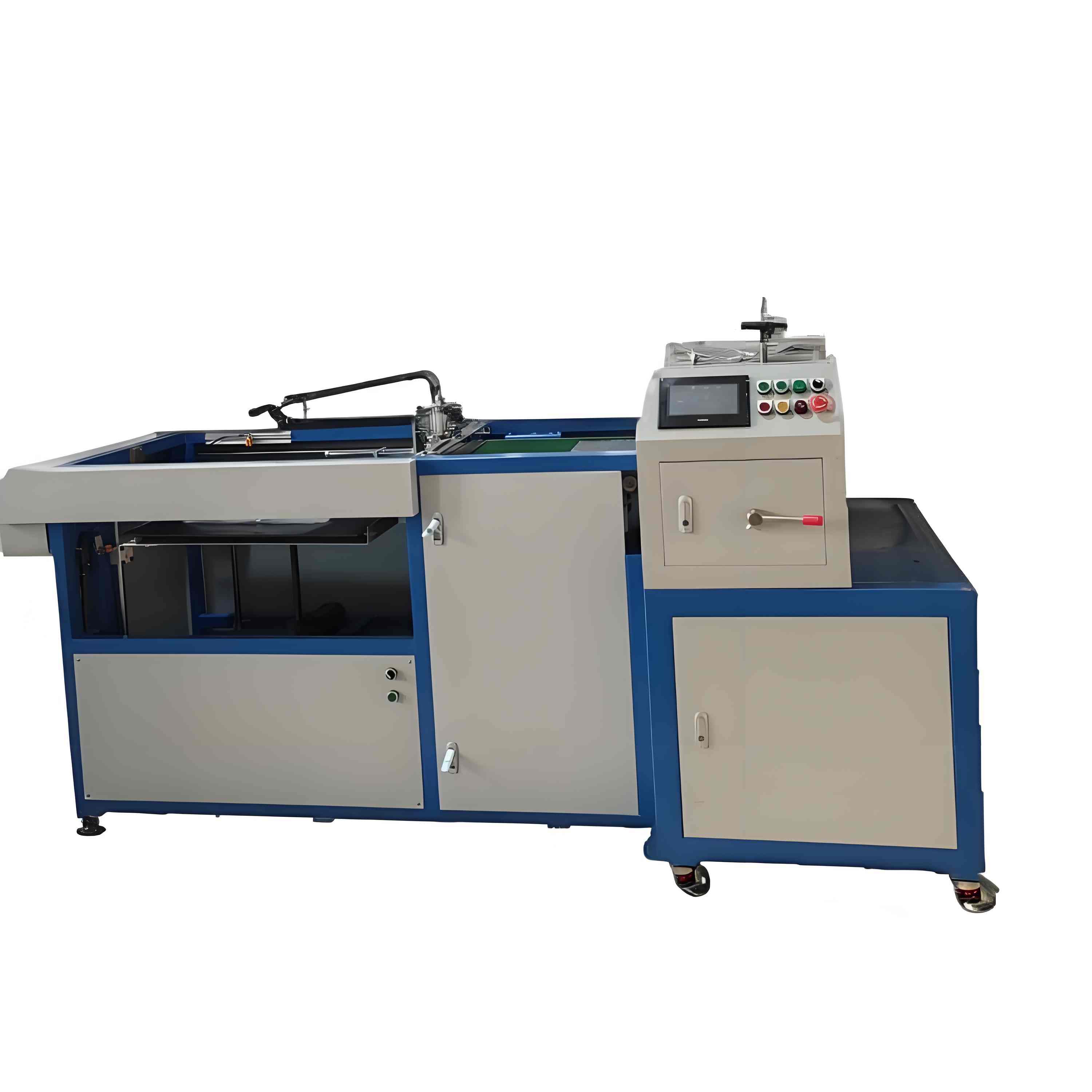

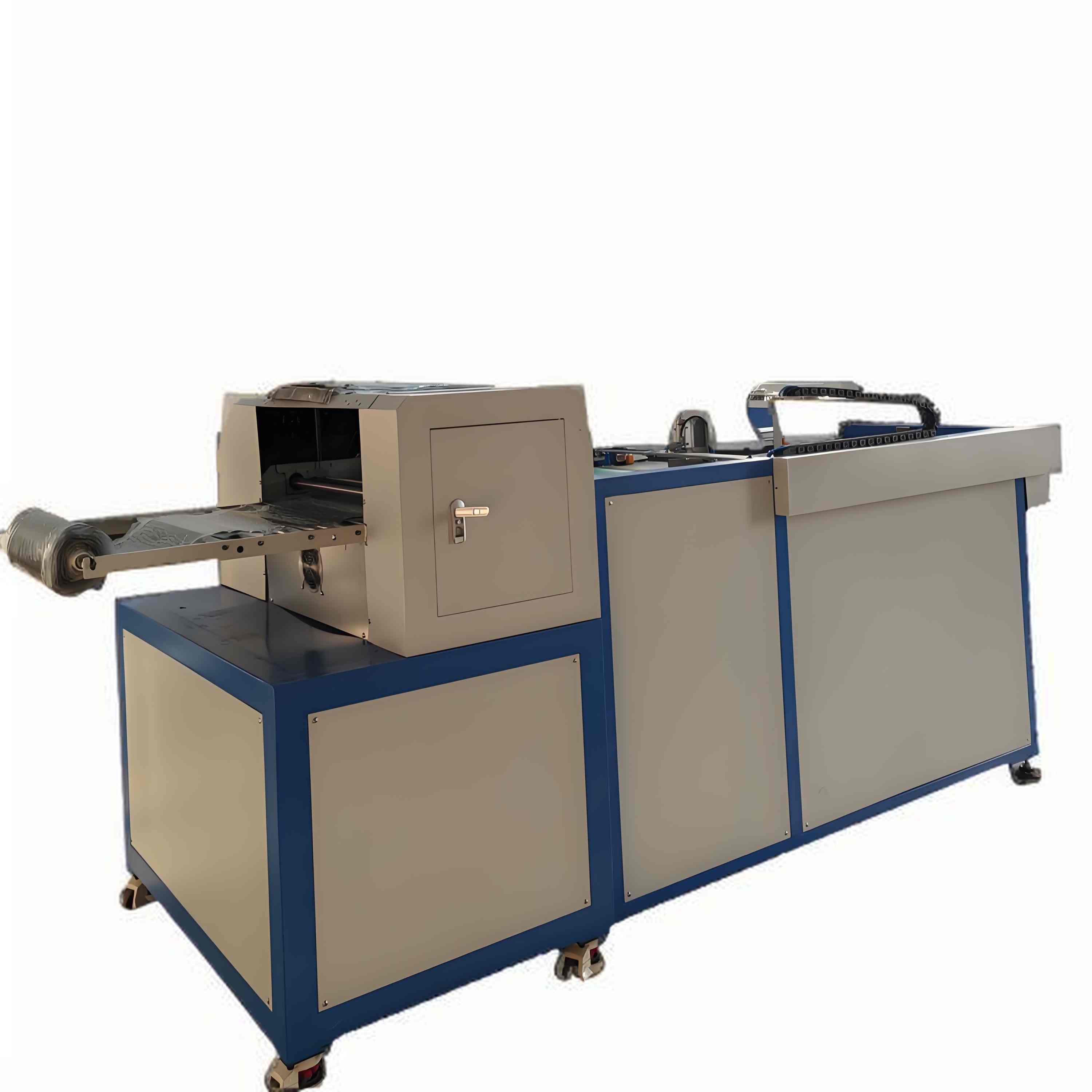

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Rubber Strip Cutting Machine Advanced Type
Model
PG-HA-600
PG-HA-800
PG-HA-1000
Size
1350*1300*1490
1350*1500*1490
1350*1700*1490
Weight
600kg
680kg
760kg
Cutting Direction
Horizontal
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
≤1000mm
Cutting Length
0.1-1000mm
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~25mm
0~25mm
0~25mm
Max Precision
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
Blade Material
Tungsten Steel W18
Tungsten Steel W18
Tungsten Steel W18
Feeding Mode
Servo motor
Servo motor
Servo motor
Cut Speed
≤80/min
≤80/min
≤80/min
Power supply
4kw 3ph 380v
4kw 3ph 380v
5.5kw 3ph 380v
Speed Control
PLC& Inverter
PLC& Inverter
PLC& Inverter
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Rubber Strip Cutting Machine Advanced Type
Model
PG-HA-600
PG-HA-800
PG-HA-1000
Size
1350*1300*1490
1350*1500*1490
1350*1700*1490
Weight
600kg
680kg
760kg
Cutting Direction
Horizontal
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
≤1000mm
Cutting Length
0.1-1000mm
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~25mm
0~25mm
0~25mm
Max Precision
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
Blade Material
Tungsten Steel W18
Tungsten Steel W18
Tungsten Steel W18
Feeding Mode
Servo motor
Servo motor
Servo motor
Cut Speed
≤80/min
≤80/min
≤80/min
Power supply
4kw 3ph 380v
4kw 3ph 380v
5.5kw 3ph 380v
Speed Control
PLC& Inverter
PLC& Inverter
PLC& Inverter
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Rubber Strip Cutting Machine Advanced Type
Model
PG-HA-600
PG-HA-800
PG-HA-1000
Size
1350*1300*1490
1350*1500*1490
1350*1700*1490
Weight
600kg
680kg
760kg
Cutting Direction
Horizontal
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
≤1000mm
Cutting Length
0.1-1000mm
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~25mm
0~25mm
0~25mm
Max Precision
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
0.1mm or 0.1g*
*Strip thickness should be consistent.
Blade Material
Tungsten Steel W18
Tungsten Steel W18
Tungsten Steel W18
Feeding Mode
Servo motor
Servo motor
Servo motor
Cut Speed
≤80/min
≤80/min
≤80/min
Power supply
4kw 3ph 380v
4kw 3ph 380v
5.5kw 3ph 380v
Speed Control
PLC& Inverter
PLC& Inverter
PLC& Inverter
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Rubber Strip Cutting Machine Standard Type
Model
PG-H-600
PG-H-800
PG-H-1000
Size
1170*1300*1400
1170*1500*1400
1170*1700*1400
Weight
400kg
450kg
500kg
Cutting Direction
Horizontal
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
≤1000mm
Cutting Length
0.1-1000mm
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~12mm
0~12mm
0~12mm
Precision
0.2mm or 0.3g
0.2mm or 0.3g
0.2mm or 0.3g
Blade material
CR12Mov
CR12Mov
CR12Mov
Feeding mode
Stepper motor
Stepper motor
Stepper motor
Cut Speed
≤70/min
≤70/min
≤70/min
Power supply
2kw 3ph 380v
3kw 3ph 380v
4kw 3ph 380v
Speed Control
Industrial Control Board
Industrial Control Board
Industrial Control Board
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Pneumatic Auto Weighing Rubber Strip Cutter
Model
PG-AW-600
PG-AW-800
Type
Pneumatic Drive
Pneumatic Drive
Power supply
2.2kw 3ph 380V 50/60Hz
2.2kw 3ph 380V 50/60Hz
Size
1030*899*1580
1030*1100*1580
Weight
320kg
400kg
Cutting Direction
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
Cutting Length
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~10mm
0~10mm
Max Precision
0.1mm or 0.2g*
*Strip thickness should be consistent.
0.1mm or 0.2g*
*Strip thickness should be consistent.
Blade Material
Cr12 Mov Vacuum Heat
Cr12 Mov Vacuum Heat
Feeding Mode
Stepper Motor
Stepper Motor
Cut Speed
0-12cuts/min
0-12cuts/min
Speed Control
PLC
PLC
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.
Pneumatic Auto Weighing Rubber Strip Cutter
Model
PG-AW-600
PG-AW-800
Type
Pneumatic Drive
Pneumatic Drive
Power supply
2.2kw 3ph 380V 50/60Hz
2.2kw 3ph 380V 50/60Hz
Size
1030*899*1580
1030*1100*1580
Weight
320kg
400kg
Cutting Direction
Horizontal
Horizontal
Cutting width
≤580mm
≤800mm
Cutting Length
0.1-1000mm
0.1-1000mm
Cutting Thickness
0~10mm
0~10mm
Max Precision
0.1mm or 0.2g*
*Strip thickness should be consistent.
0.1mm or 0.2g*
*Strip thickness should be consistent.
Blade Material
Cr12 Mov Vacuum Heat
Cr12 Mov Vacuum Heat
Feeding Mode
Stepper Motor
Stepper Motor
Cut Speed
0-12cuts/min
0-12cuts/min
Speed Control
PLC
PLC
Operation Mode
7-inch Touch Screen
7-inch Touch Screen
