Advanced Rubber Strip Cutter PG-HA-1000

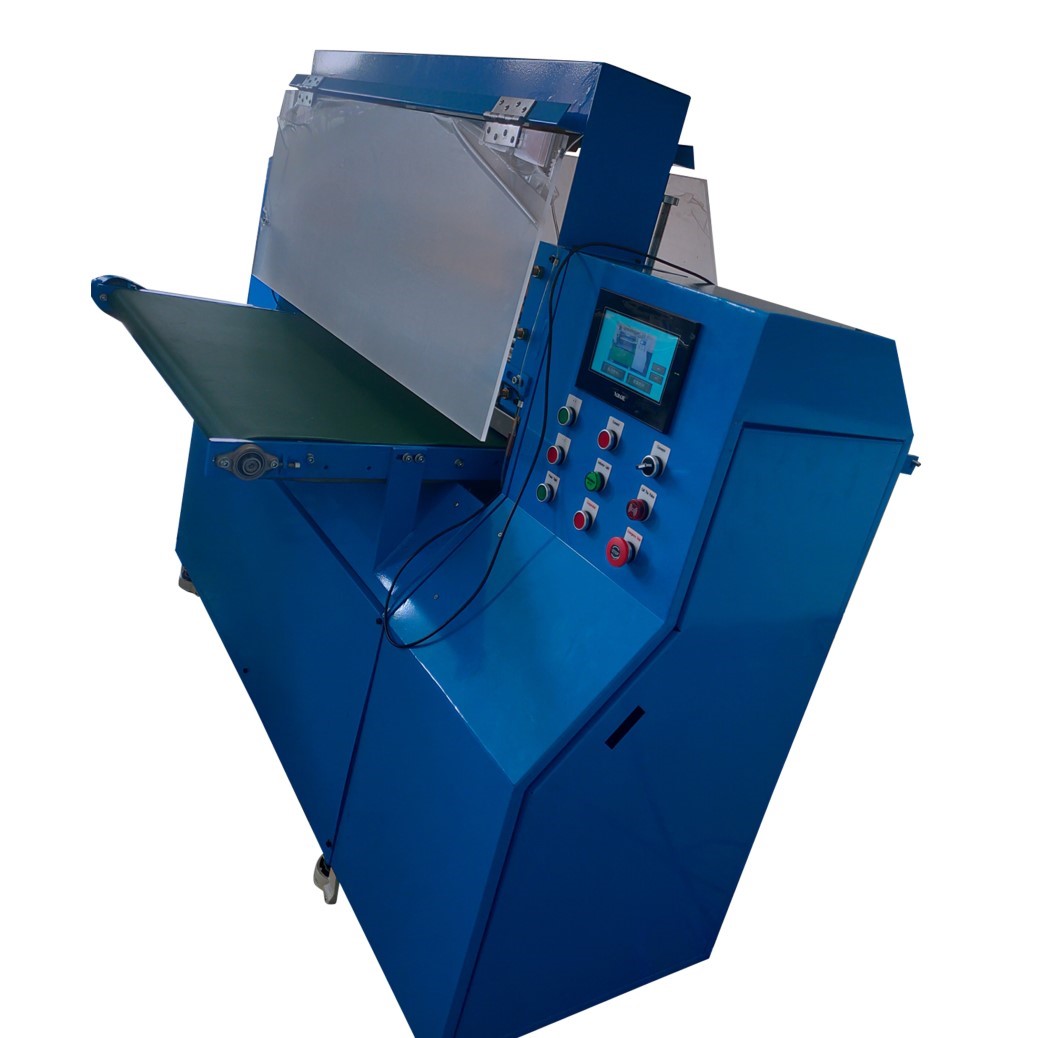

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Standard Type Model PG-H-600 PG-H-800 PG-H-1000 Size 1170*1300*1400 1170*1500*1400 1170*1700*1400 Weight 400kg 450kg 500kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~12mm 0~12mm  0~12mm  Precision 0.2mm or 0.3g 0.2mm or 0.3g 0.2mm or 0.3g Blade material CR12Mov CR12Mov CR12Mov Feeding mode Stepper motor Stepper motor Stepper motor Cut Speed ≤70/min ≤70/min ≤70/min Power supply 2kw 3ph 380v 3kw 3ph 380v 4kw 3ph 380v Speed Control Industrial Control Board Industrial Control Board Industrial Control Board Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled

Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled

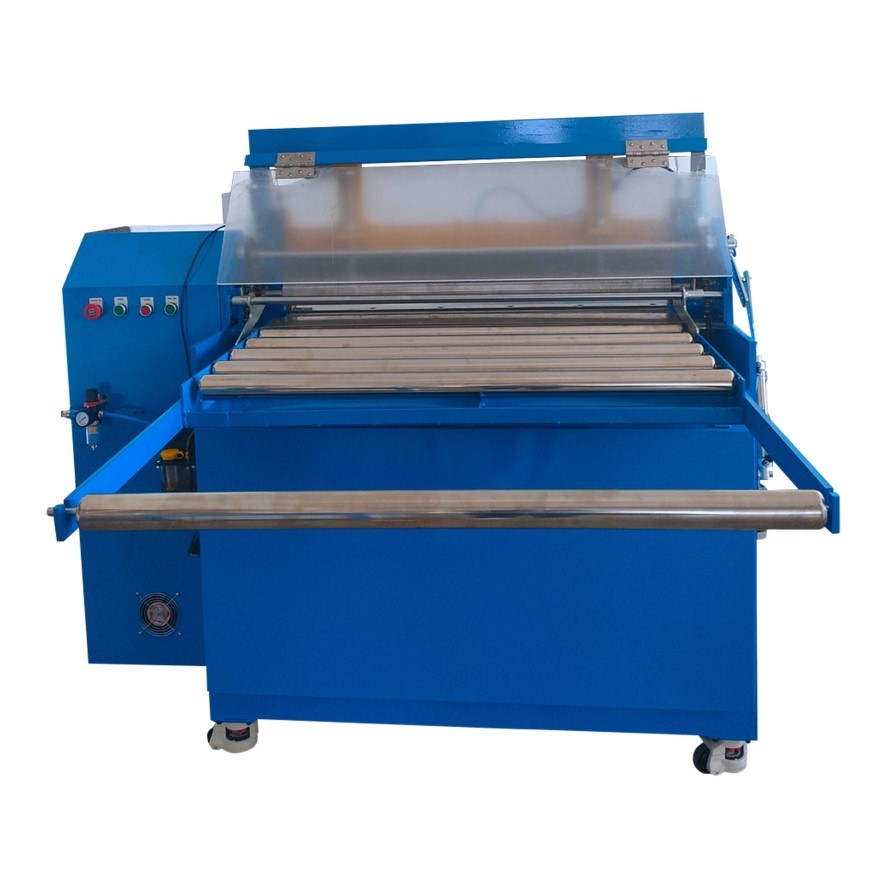

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 3ph 380V 50/60Hz 2.2kw 3ph 380V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen

The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 3ph 380V 50/60Hz 2.2kw 3ph 380V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen
